ESW8006-AQ | Diotec

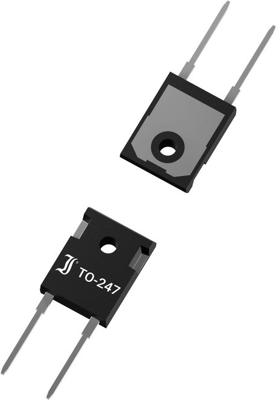

Superfast rectifier diode, 650 V, 80 A, TO-247-2L, ESW8006-AQ
Unit Price (€ / pc.)
1.1781 € *
Standard delivery time from the manufacturer is: 4 Weeks
Superfast Rectifier Diode, ESW8006-AQ, Diotec
Superfast Efficient Rectifier Diodes with Soft Recovery
Features
- Soft reverse recovery
- Very low recovery time
- Compliant to RoHS
Applications
- Rectification of high frequencies
- Free-wheeling diodes
- Power factor correction
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Version | superfast rectifier diode | |
| Junction temperature (min.) | -50 °C | |
| Assembly | THT | |
| Surge blocking voltage V RMS | 650 V | |
| Enclosure | TO-247-2L | |
| Junction temperature (max.) | 175 °C | |
| Voltage V RRM (peak reverse voltage) | 650 V | |
| Number of diodes | 1 | |
| Forward Current | 80 A | |
| min. operating temperature | -50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 30 pieces |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
