DD1200 | Diotec

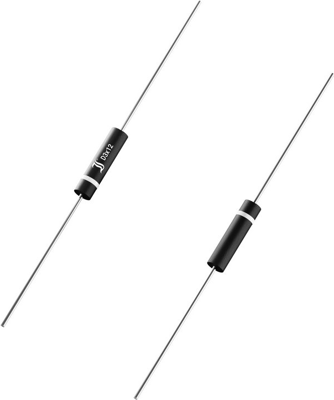

High voltage diode, 12000 V, 20 mA, D3x12, DD1200

Order No.: 70S0350
MPN:
DD1200
DD1200 Diotec Rectifier Diodes
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available in 4 Days: 5,000 pcs. - if ordered today
Total Price:
1,666.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.3332 €

Fast Recovery High Voltage Rectifier Diode, DD1200, Diotec

Features

  • High creepage and clearance
  • Compliant to RoHS

Applications

  • High voltage rectification at medium frequencies
  • Commercial / Industrual grade
Technical specifications
Filter Property Value
Forward Current 20 mA
Enclosure D3x12
Assembly axial
Junction temperature (min.) -50 °C
min. operating temperature -50 °C
Junction temperature (max.) 150 °C
Version high voltage diode
Number of diodes 1
Voltage V RRM (peak reverse voltage) 12000 V
Surge blocking voltage V RMS 12000 V
max. operating temperature 150 °C
Logistics
Property Value
Original Packaging Reel with 5,000 pieces
Country of origin CN
Customs tariff number 85411000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
