BY8 | Diotec

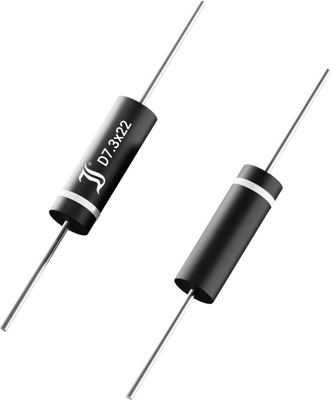

High voltage diode, 8000 V, 0.5 A, D7.3x22, BY8
Order No.: 70S0346
MPN:
BY8
Unit Price (€ / pc.)
1.0353 € *
Available in 4 Days: 3,000 pcs. - if ordered today
Standard Recovery High Voltage Rectifier Diode, BY8, Diotec
Features
- High creepage and clearance
- Compliant to RoHS
Applications
- High voltage rectification at 50/60 Hz
- Commercial grade
Technical specifications
Filter | Property | Value |
---|---|---|
Forward Current | 0.5 A | |
Enclosure | D7.3x22 | |
Assembly | axial | |
Junction temperature (min.) | -50 °C | |
min. operating temperature | -50 °C | |
Junction temperature (max.) | 150 °C | |
Version | high voltage diode | |
Number of diodes | 1 | |
Voltage V RRM (peak reverse voltage) | 8000 V | |
Surge blocking voltage V RMS | 8000 V | |
max. operating temperature | 150 °C |
Download
Logistics
Property | Value |
---|---|
Original Packaging | Reel with 1,000 pieces |
Country of origin | CN |
Customs tariff number | 85411000 |
Compliance
Property | Value |
---|---|
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
SVHC free | No |
