1N4001 | Diotec

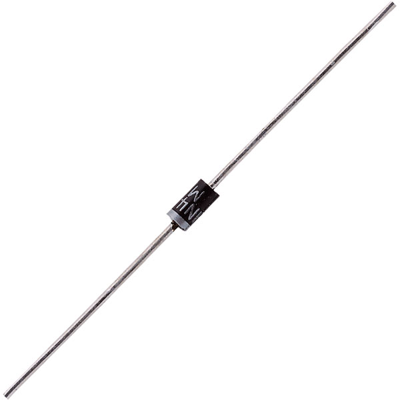

Rectifier diode, 50 V, 1 A, DO-41, 1N4001
Unit Price (€ / pc.)
0.0262 € *
Available: 297 pcs.
Available in 10 days: 1,297 pcs. - if ordered today
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0262 €
300 pcs.
0.0238 €
1000 pcs.
0.0226 €
3000 pcs.
0.0202 €
*incl. VAT plus shipping costs
Subject to prior sale
Rectifier diodes.
Technical attributes (type, rated current, cyclic peak reverse voltage, package, manufacturer): 1N4001, 1.0 A, 50 V, DO41, Diotec
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -50 °C | |
| Forward Current | 1 A | |
| Junction temperature (max.) | 175 °C | |
| max. operating temperature | 175 °C | |
| Junction temperature (min.) | -50 °C | |
| Version | standard recovery diode | |
| Voltage V RRM (peak reverse voltage) | 50 V | |
| Assembly | THT | |
| Enclosure | DO-41 | |
| Surge blocking voltage V RMS | 50 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
| Original Packaging | Ammopack with 1 piece |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
