MMFTN123 | Diotec

Diotec N channel FET, 100 V, 170 mA, SOT-23, MMFTN123

Order No.: 09S4365
EAN: 4099879032737
MPN:
MMFTN123
Series: MMFTN
Diotec
MMFTN123 Diotec MOSFETs

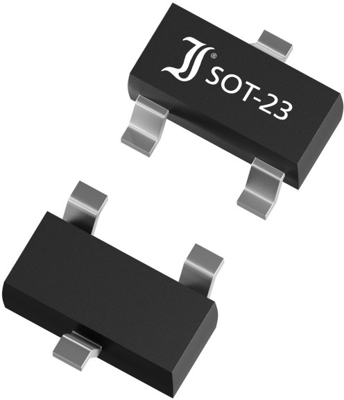

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 100 V
Max. current 170 mA
drain-source on resistance RDS (on) max @VGS=4,5V 10 Ω
drain-source on resistance RDS (on) max @VGS=10V 6 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.0471 € *
Available in 4 Days: 942,000 pcs. - if ordered today
Total Price:
141.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.0471 €
Description
Technical specifications
Download
Logistics
Compliance

Field effect transistor, MMFTN123, Diotec

N-channel enhancement mode FET

Features

  • Fast switching speed
  • Compliant to RoHS

Applications

  • Signal processing
  • Logic level converter
Technical specifications
Version N channel
min. operating temperature -55 °C
max. Voltage 100 V
drain-source on resistance RDS (on) max @VGS=10V 6 Ω
Assembly SMD
Enclosure SOT-23
max. operating temperature 150 °C
Power loss 360 mW
drain-source on resistance RDS (on) max @VGS=4,5V 10 Ω
Max. current 170 mA
Articles of same specification 0
Logistics
Customs tariff number 85412100
Original Packaging Reel with 3,000 pieces
Country of origin CN
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol
SVHC free No
