MMBT7002K | Diotec

Diotec N channel FET, 60 V, 300 mA, SOT-23, MMBT7002K

Order No.: 09S4347
EAN: 4099879032720
MPN:
MMBT7002K
Series: MMBT
Diotec
MMBT7002K Diotec MOSFETs

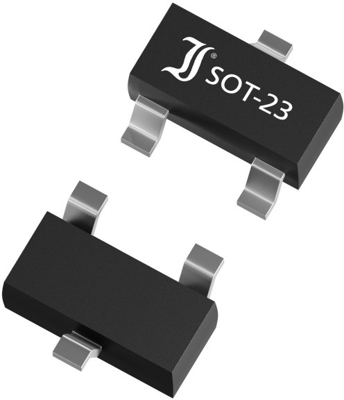

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 60 V
Max. current 300 mA
drain-source on resistance RDS (on) max @VGS=4,5V 4 Ω
drain-source on resistance RDS (on) max @VGS=10V 3 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.0202 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
60.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.0202 €
Description
Technical specifications
Download
Logistics
Compliance

Field effect transistor, MMBT7002K, Diotec

N-channel enhancement mode FET

Features

  • ESD protected gate
  • Fast switching speed
  • Compliant to RoHS

Applications

  • Signal processing
  • Logic level converter
Technical specifications
min. operating temperature -55 °C
max. operating temperature 150 °C
drain-source on resistance RDS (on) max @VGS=10V 3 Ω
Version N channel
Assembly SMD
max. Voltage 60 V
drain-source on resistance RDS (on) max @VGS=4,5V 4 Ω
Enclosure SOT-23
Max. current 300 mA
Power loss 350 mW
Articles of same specification 0
Logistics
Customs tariff number 85412100
Country of origin CN
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol
