MD10P380 | Diotec

Diotec P-channel MOSFET, -100 V, -1.6 A, SOT-26, MD10P380

Order No.: 09S5618
MPN:
MD10P380
Series: MD
Diotec
MD10P380 Diotec MOSFETs

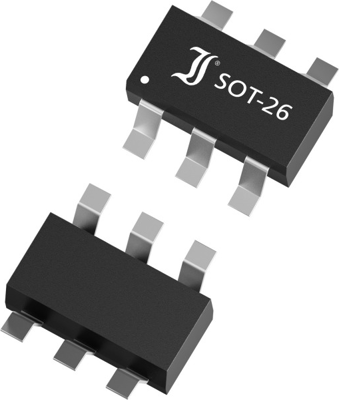

Image may differ
Print
Key Specification:
Version P-channel
max. Voltage -100 V
Max. current -1.6 A
drain-source on resistance RDS (on) max @VGS=4,5V 380 mΩ
drain-source on resistance RDS (on) max @VGS=10V 325 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.1395 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
418.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.1395 €
Description
Technical specifications
Download
Logistics
Compliance

P-Channel Enhancement Mode FET, MD10P380, Diotec

Features

  • High Drain (peak) current
  • Low on-state resistance
  • Fast switching times
  • Compliant to RoHS

Applications

  • Signal processing
  • Battery management
  • Drivers
  • Logic level converter
  • Commercial / industrial grade
Technical specifications
max. Voltage -100 V
Assembly SMD
Power loss 1 W
drain-source on resistance RDS (on) max @VGS=10V 325 mΩ
max. operating temperature 150 °C
Version P-channel
drain-source on resistance RDS (on) max @VGS=4,5V 380 mΩ
Gate Charge Qg @10V (nC) 1.6x10<sup>-8</sup> C
Enclosure SOT-26
min. operating temperature -55 °C
Max. current -1.6 A
Articles of same specification 0
Logistics
Country of origin CN
Original Packaging Reel with 3,000 pieces
Customs tariff number 85412100
MSL MSL 1
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
