DIW065SIC015 | Diotec

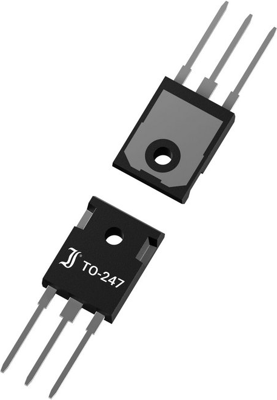

Diotec N channel SiC MOSFET, 650 V, 150 A, TO-247-3L, DIW065SIC015

Order No.: 09S5584
MPN:
DIW065SIC015
Series: DIW
DIW065SIC015 Diotec MOSFETs
Image may differ
Unit Price (€ / pc.)
23.2645 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10,469.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
450 pcs.
23.2645 €

Silicon Carbide (SiC) MOSFET, DIW065SIC015, Diotec

Features

  • Advanced Trench Technology
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated
  • Compliant to RoHS

Applications

  • DC/DC Converters
  • Power Supplies
  • DC Drives
  • Charging Station
  • Inverter
  • Commercial / industrial grade
Technical specifications
Filter Property Value
max. Voltage 650 V
Assembly THT
Power loss 550 W
max. operating temperature 150 °C
Version N channel
Enclosure TO-247-3L
min. operating temperature -55 °C
Max. current 150 A
Logistics
Property Value
Country of origin CN
Original Packaging Bar with 30 pieces
Customs tariff number 85412900
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
