DIW003N150 | Diotec

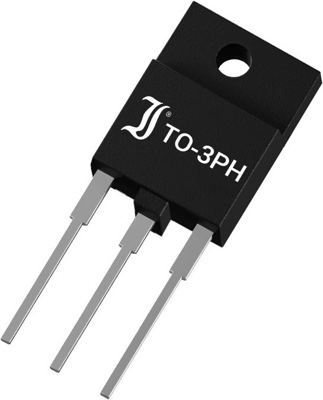

Diotec N channel MOSFET, 1500 V, 3 A, TO-3PH, DIW003N150

Order No.: 09S5572
MPN:
DIW003N150
Series: DIW
DIW003N150 Diotec MOSFETs
Image may differ
Unit Price (€ / pc.)
1.9754 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
888.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
450 pcs.
1.9754 €

N-Channel Power MOSFET, DIW003N150, Diotec

Features

  • Advanced Trench Technology
  • Standard Level Gate drive
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated
  • Compliant to RoHS

Applications

  • DC/DC Converters
  • Power Supplies
  • Commercial / industrial grade
Technical specifications
Filter Property Value
max. Voltage 1500 V
Assembly THT
Power loss 50 W
drain-source on resistance RDS (on) max @VGS=10V 6.5 Ω
max. operating temperature 150 °C
Version N channel
Gate Charge Qg @10V (nC) 3.6x10<sup>-8</sup> C
Enclosure TO-3PH
min. operating temperature -55 °C
Max. current 3 A
Logistics
Property Value
Country of origin CN
Original Packaging Bar with 30 pieces
Customs tariff number 85412900
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
