DIJ128N10 | Diotec

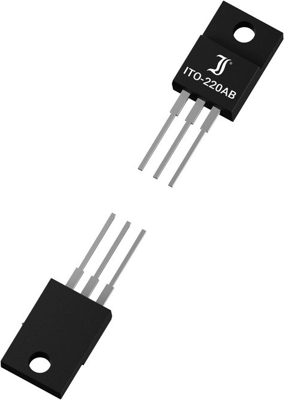

Diotec N channel MOSFET, 100 V, 128 A, ITO-220AB, DIJ128N10

Order No.: 09S4994
MPN:
DIJ128N10
Series: DIJ
DIJ128N10 Diotec MOSFETs
Image may differ
Unit Price (€ / pc.)
0.8925 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
892.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.8925 €

N-Channel Power MOSFET, DIJ128N10, Diotec

Features

  • Advanced Trench Technology
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated
  • Compliant to RoHS

Applications

  • DC/DC Converters
  • Power Supplies
  • DC Drives
  • Power Tools
  • Commercial / industrial grade
Technical specifications
Filter Property Value
max. Voltage 100 V
Assembly THT
Power loss 75 W
drain-source on resistance RDS (on) max @VGS=10V 4.5 mΩ
max. operating temperature 150 °C
Version N channel
Gate Charge Qg @10V (nC) 7.4x10<sup>-8</sup> C
Enclosure ITO-220AB
min. operating temperature -55 °C
Max. current 128 A
Logistics
Property Value
Country of origin CN
Original Packaging Bar with 50 pieces
Customs tariff number 85412900
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
