DIH005P03-AQ | Diotec

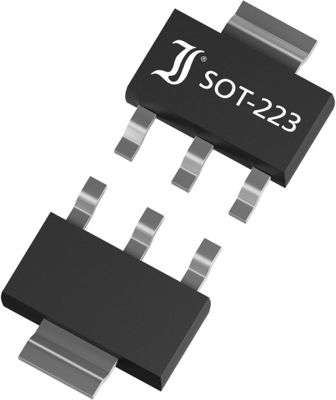

Diotec P-channel MOSFET, -30 V, -5.2 A, SOT-223, DIH005P03-AQ

Order No.: 09S4990
MPN:
DIH005P03-AQ
Series: DIJ
DIH005P03-AQ Diotec MOSFETs
Image may differ
Unit Price (€ / pc.)
0.6307 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2,522.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.6307 €

P-Channel Enhancement Mode FET, DIH005P03-AQ, Diotec

Features

  • Fast switching times
  • Compliant to RoHS

Applications

  • Signal processing
  • Battery management
  • Drivers
  • Load Switch
Technical specifications
Filter Property Value
max. Voltage -30 V
Assembly SMD
Power loss 8.9 W
drain-source on resistance RDS (on) max @VGS=10V 80 mΩ
max. operating temperature 150 °C
Version P-channel
drain-source on resistance RDS (on) max @VGS=4,5V 112.5 mΩ
Enclosure SOT-223
min. operating temperature -55 °C
Max. current -5.2 A
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 4,000 pieces
Customs tariff number 85412900
MSL MSL 3
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
