DIF170SIC049 | Diotec

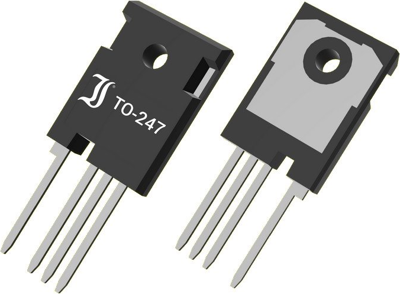

Diotec N channel SiC MOSFET, 1700 V, 67 A, TO-247-4L, DIF170SIC049
Unit Price (€ / pc.)
14.7798 € *
Available in 4 Days: 450 pcs. - if ordered today
Silicon Carbide (SiC) MOSFET, DIF170SIC049, Diotec
Features
- Advanced Trench Technology
- Low on state resistance
- Fast switching times
- Low gate charge
- Avalanche rated
- Compliant to RoHS
Applications
- DC/DC Converters
- Power Supplies
- DC Drives
- Charging Station
- Inverter
- Commercial / industrial grade
Technical specifications
Filter | Property | Value |
---|---|---|
max. Voltage | 1700 V | |
Assembly | THT | |
Power loss | 357 W | |
max. operating temperature | 175 °C | |
Version | N channel | |
Enclosure | TO-247-4L | |
min. operating temperature | -55 °C | |
Max. current | 67 A |
Download
Logistics
Property | Value |
---|---|
Country of origin | CN |
Original Packaging | Bar with 30 pieces |
Customs tariff number | 85412900 |
Compliance
Property | Value |
---|---|
SVHC free | No |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
