DIF120SIC053-AQ | Diotec

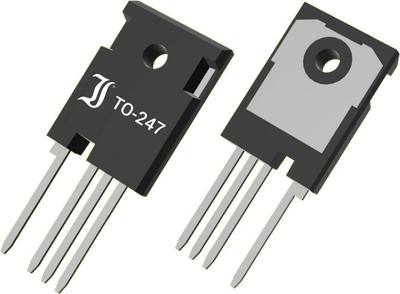

Diotec N channel SiC MOSFET, 1200 V, 65 A, TO-247-4L, DIF120SIC053-AQ

Order No.: 09S4984
MPN:
DIF120SIC053-AQ
Series: DIF
DIF120SIC053-AQ Diotec MOSFETs
Image may differ
Unit Price (€ / pc.)
21.9674 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9,885.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
450 pcs.
21.9674 €

Silicon Carbide (SiC) MOSFET, DIF120SIC053-AQ, Diotec

Features

  • SiC Wide Bandgap Material
  • Large clearance and creepage
  • Kelvin source for fast switching and
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated
  • Compliant to RoHS

Applications

  • EV Charging Stations
  • Solar Inverter
  • Battery Charger
  • Power Supplies
  • Commercial / industrial grade
Technical specifications
Filter Property Value
max. Voltage 1200 V
Assembly THT
Power loss 278 W
max. operating temperature 175 °C
Version N channel
Enclosure TO-247-4L
min. operating temperature -55 °C
Max. current 65 A
Logistics
Property Value
Country of origin CN
Original Packaging Bar with 30 pieces
Customs tariff number 85412900
MSL MSL 1
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
