DI3A5C03SQ | Diotec

Diotec N/P-channel MOSFET, 30 V, 3.5 A, SO-8, DI3A5C03SQ

Order No.: 09S4936
MPN:
DI3A5C03SQ
Series: DI
DI3A5C03SQ Diotec MOSFETs

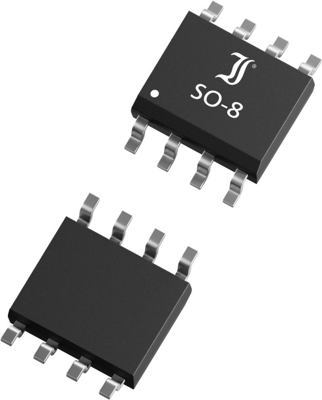

Image may differ
Unit Price (€ / pc.)
0.1900 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
760.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.1900 €

Dual N+P Channel Power MOSFET, DI3A5C03SQ, Diotec

Features

  • Two complementary MOSFETs
  • Low profile height
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Compliant to RoHS

Applications

  • Power Management Units
  • MOSFET & IGBT driver
  • Class-D audio amplifier
  • Commercial / industrial grade
Technical specifications
Filter Property Value
max. Voltage 30 V
Assembly SMD
Power loss 2 W
drain-source on resistance RDS (on) max @VGS=10V 98 mΩ
max. operating temperature 150 °C
Version N/P-channel
drain-source on resistance RDS (on) max @VGS=4,5V 126 mΩ
Gate Charge Qg @10V (nC) 1.9x10<sup>-9</sup> C
Enclosure SO-8
min. operating temperature -55 °C
Max. current 3.5 A
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 4,000 pieces
Customs tariff number 85412900
MSL MSL 3
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
