DI126N03PQ | Diotec

Diotec N channel MOSFET, 30 V, 126 A, PowerQFN 5x6, DI126N03PQ

Order No.: 09S4850
MPN:
DI126N03PQ
Series: DI
DI126N03PQ Diotec MOSFETs

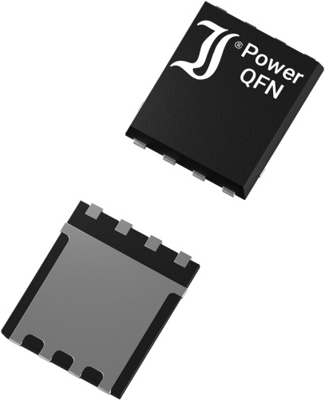

Image may differ
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1,904.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.3808 €

N-Channel Power MOSFET, DI126N03PQ, Diotec

Features

  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated
  • Compliant to RoHS

Applications

  • DC/DC Converters
  • Power Supplies
  • DC Drives
  • Power Tools
  • Synchronous Rectifiers
  • Commercial grade
Technical specifications
Filter Property Value
max. Voltage 30 V
Assembly SMD
Power loss 52 W
drain-source on resistance RDS (on) max @VGS=10V 1.9 mΩ
max. operating temperature 150 °C
Version N channel
drain-source on resistance RDS (on) max @VGS=4,5V 2.9 mΩ
Gate Charge Qg @10V (nC) 2.01x10<sup>-7</sup> C
Enclosure PowerQFN 5x6
min. operating temperature -55 °C
Max. current 126 A
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 5,000 pieces
Customs tariff number 85412900
MSL MSL 3
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
