DI100P04PQ-AQ | Diotec

Diotec P-channel MOSFET, -40 V, -70 A, PowerQFN 5x6, DI100P04PQ-AQ

Order No.: 09S4814
MPN:
DI100P04PQ-AQ
Series: DI
Diotec
DI100P04PQ-AQ Diotec MOSFETs

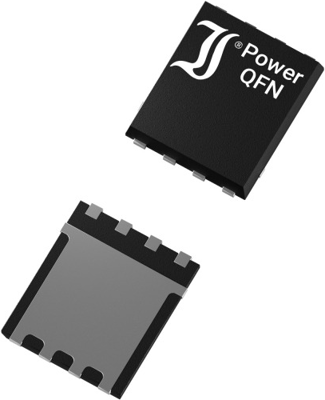

Image may differ
Print
Key Specification:
Version P-channel
max. Voltage -40 V
Max. current -70 A
drain-source on resistance RDS (on) max @VGS=4,5V 5.5 mΩ
drain-source on resistance RDS (on) max @VGS=10V 3.8 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2,856.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.5712 €
Description
Technical specifications
Download
Logistics
Compliance

P-Channel Power MOSFET, DI100P04PQ-AQ, Diotec

Features

  • Logic Level Gate Drive
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated
  • Compliant to RoHS

Applications

  • DC/DC Converters
  • Power Supplies
  • DC Drives
  • Power Tools
  • Synchronous Rectifiers
  • Commercial / industrial grade
Technical specifications
Gate Charge Qg @10V (nC) 1.18x10<sup>-7</sup> C
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly SMD
max. Voltage -40 V
drain-source on resistance RDS (on) max @VGS=4,5V 5.5 mΩ
Max. current -70 A
Power loss 50 W
Version P-channel
Enclosure PowerQFN 5x6
drain-source on resistance RDS (on) max @VGS=10V 3.8 mΩ
Articles of same specification 0
Logistics
Customs tariff number 85412900
MSL MSL 3
Original Packaging Reel with 5,000 pieces
Country of origin CN
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
