DI0A35N06PGK | Diotec

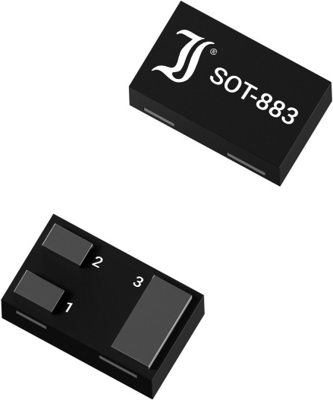

Diotec N channel MOSFET, 60 V, 350 mA, SOT-883, DI0A35N06PGK
Unit Price (€ / pc.)
   0.0281 €  *
   Standard delivery time from the manufacturer is: 4 Weeks
 N-Channel Power MOSFET, DI0A35N06PGK, Diotec
Features
- Low profile height
- Low on state resistance
- Fast switching times
- Low gate charge
- Compliant to RoHS
Applications
- Power Management Units
- Battery powered devices
- Load Switches
- Polarity Protection
- Commercial / industrial grade
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Gate Charge Qg @10V (nC) | 1.9x10<sup>-9</sup> C | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| max. Voltage | 60 V | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 2.2 Ω | |
| Max. current | 350 mA | |
| Power loss | 233 mW | |
| Version | N channel | |
| Enclosure | SOT-883 | |
| drain-source on resistance RDS (on) max @VGS=10V | 1.4 Ω |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85412100 |
| MSL | MSL 1 |
| Original Packaging | Reel with 10,000 pieces |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
