DI081N06PQ | Diotec

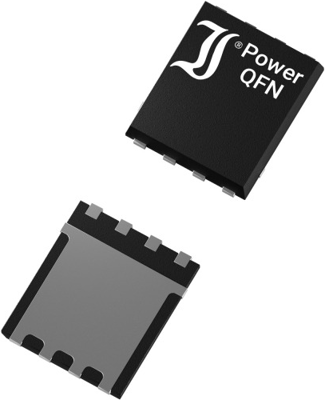

Diotec N channel MOSFET, 60 V, 80 A, PowerQFN 5x6, DI081N06PQ

Order No.: 09S4788
MPN:
DI081N06PQ
Series: DI
Diotec
DI081N06PQ Diotec MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 60 V
Max. current 80 A
drain-source on resistance RDS (on) max @VGS=4,5V 8 mΩ
drain-source on resistance RDS (on) max @VGS=10V 5.7 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2,261.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.4522 €
Description
Technical specifications
Download
Logistics
Compliance

N-Channel Power MOSFET, DI081N06PQ, Diotec

Features

  • Logic Level Gate Drive
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Avalanche rated
  • Compliant to RoHS

Applications

  • DC/DC Converters
  • Power Supplies
  • DC Drives
  • Power Tools
  • Synchronous Rectifiers
  • Commercial / industrial grade
Technical specifications
max. Voltage 60 V
Assembly SMD
Power loss 32.9 W
drain-source on resistance RDS (on) max @VGS=10V 5.7 mΩ
max. operating temperature 150 °C
Version N channel
drain-source on resistance RDS (on) max @VGS=4,5V 8 mΩ
Gate Charge Qg @10V (nC) 3x10<sup>-8</sup> C
Enclosure PowerQFN 5x6
min. operating temperature -55 °C
Max. current 80 A
Articles of same specification 0
Logistics
Country of origin CN
Original Packaging Reel with 5,000 pieces
Customs tariff number 85412900
MSL MSL 3
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
