DI057N08PT-AQ | Diotec

Diotec N channel MOSFET, 80 V, 57 A, PowerQFN 3x3, DI057N08PT-AQ

Order No.: 09S4726
MPN:
DI057N08PT-AQ
Series: DI
DI057N08PT-AQ Diotec MOSFETs

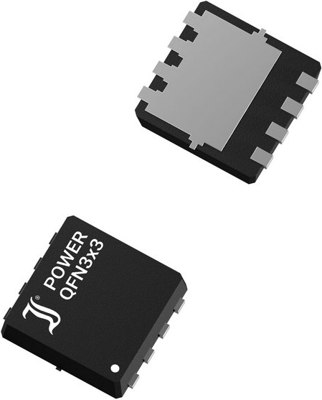

Image may differ
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2,320.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.4641 €

N-Channel Power MOSFET, DI057N08PT-AQ, Diotec

Features

  • Logic Level Gate Drive
  • Low profile height
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Compliant to RoHS

Applications

  • Power Management Units
  • Battery powered devices
  • Load Switches
  • Polarity Protection
  • Commercial / industrial grade
Technical specifications
Filter Property Value
max. Voltage 80 V
Assembly SMD
Power loss 41.6 W
drain-source on resistance RDS (on) max @VGS=10V 7 mΩ
max. operating temperature 175 °C
Version N channel
drain-source on resistance RDS (on) max @VGS=4,5V 9 mΩ
Gate Charge Qg @10V (nC) 3.3x10<sup>-8</sup> C
Enclosure PowerQFN 3x3
min. operating temperature -55 °C
Max. current 57 A
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 5,000 pieces
Customs tariff number 85412900
MSL MSL 3
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
