DI045N03PT-AQ | Diotec

Diotec N channel MOSFET, 30 V, 45 A, PowerQFN 3x3, DI045N03PT-AQ

Order No.: 09S4666
MPN:
DI045N03PT-AQ
Series: DI
DI045N03PT-AQ Diotec MOSFETs

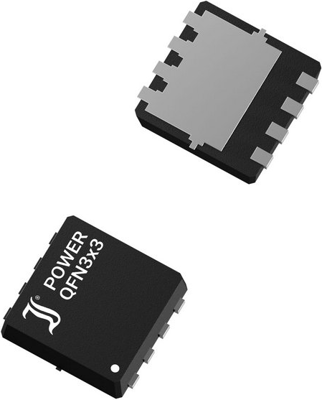

Image may differ
Unit Price (€ / pc.)
0.1971 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
985.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.1971 €

N-Channel Power MOSFET, DI045N03PT-AQ, Diotec

Features

  • Low profile height
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Compliant to RoHS

Applications

  • Power Management Units
  • Battery powered devices
  • Load Switches
  • Polarity Protection
  • Commercial grade
Technical specifications
Filter Property Value
max. Voltage 30 V
Assembly SMD
Power loss 16 W
drain-source on resistance RDS (on) max @VGS=10V 4.4 mΩ
max. operating temperature 150 °C
Version N channel
drain-source on resistance RDS (on) max @VGS=4,5V 6.8 mΩ
Gate Charge Qg @10V (nC) 5.3x10<sup>-8</sup> C
Enclosure PowerQFN 3x3
min. operating temperature -55 °C
Max. current 45 A
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 5,000 pieces
Customs tariff number 85412900
MSL MSL 3
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
