DI020P06PT-AQ | Diotec

Diotec P-channel MOSFET, -60 V, -20 A, PowerQFN 3x3, DI020P06PT-AQ

Order No.: 09S4594
MPN:
DI020P06PT-AQ
Series: DI
DI020P06PT-AQ Diotec MOSFETs

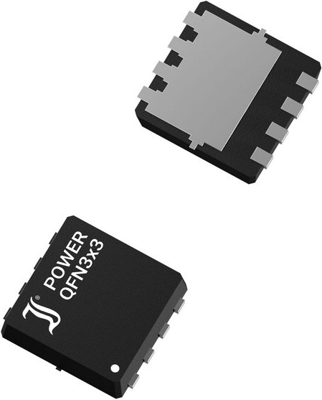

Image may differ
Unit Price (€ / pc.)
0.2425 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1,212.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2425 €

P-Channel Power MOSFET, DI020P06PT-AQ, Diotec

Features

  • Low profile height
  • Low on state resistance
  • Fast switching times
  • Low gate charge
  • Compliant to RoHS

Applications

  • Power Management Units
  • Battery powered devices
  • Load Switches
  • Polarity Protection
  • Commercial / industrial grade
Technical specifications
Filter Property Value
max. Voltage -60 V
Assembly SMD
Power loss 35.7 W
drain-source on resistance RDS (on) max @VGS=10V 45 mΩ
max. operating temperature 175 °C
Version P-channel
drain-source on resistance RDS (on) max @VGS=4,5V 50 mΩ
Gate Charge Qg @10V (nC) 3.4x10<sup>-8</sup> C
Enclosure PowerQFN 3x3
min. operating temperature -55 °C
Max. current -20 A
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 5,000 pieces
Customs tariff number 85412900
MSL MSL 3
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
