DI008N09SQ | Diotec

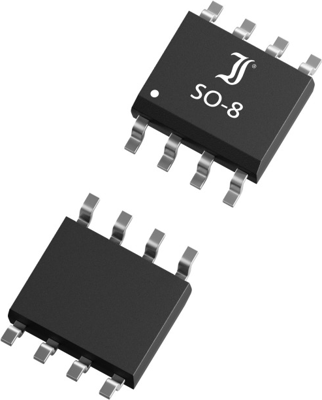

Diotec N channel MOSFET, 90 V, 8 A, SO-8, DI008N09SQ
Unit Price (€ / pc.)
0.2425 € *
Standard delivery time from the manufacturer is: 4 Weeks
N-Channel Power MOSFET, DI008N09SQ, Diotec
Features
- Low on state resistance
- Fast switching times
- Power Trench Technology
- Low gate charge
- Compliant to RoHS
Applications
- Power Management Units
- Battery powered devices
- Load Switches
- Polarity Protection
- DC/DC Converters
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate Charge Qg @10V (nC) | 1.2x10<sup>-8</sup> C | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| max. Voltage | 90 V | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 90 mΩ | |
| Max. current | 8 A | |
| Power loss | 2 W | |
| Version | N channel | |
| Enclosure | SO-8 | |
| drain-source on resistance RDS (on) max @VGS=10V | 75 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| MSL | MSL 3 |
| Original Packaging | Reel with 4,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
