LDI1117-ADH | Diotec

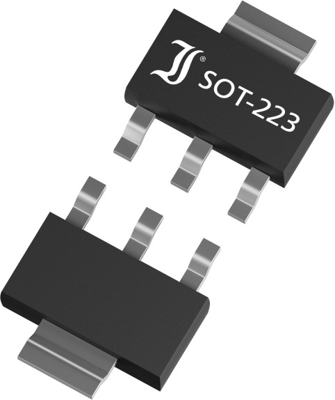

Voltage regulators, 1.25-13.65 VDC, 1 A, positive, SOT-223, LDI1117-ADH
Order No.: 70S0614
MPN:
LDI1117-ADH
Unit Price (€ / pc.)
0.0778 € *
Standard delivery time from the manufacturer is: 4 Weeks
Positive Low Dropout Voltage Regulator, LDI1117-ADH, Diotec
Features
- Integrated current limiting and thermal overload protection
- Narrow tolerance band
- Compliant to RoHS
Applications
- High efficiency linear regulators
- Active SCSI termination regulator
- Post regulators for switch mode
- DC-DC converters
- Battery backed-up regulated supply
- Commercial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-223 | |
| max. operating temperature | 125 °C | |
| Input voltage AC | 20 V | |
| Assembly | SMD | |
| Output current | 1 A | |
| Version | adjustable | |
| Output voltage DC | 1.25-13.65 VDC | |
| Number of Regulators | 1 | |
| Polarity | positive |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85423990 |
| MSL | MSL 3 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
