DI78L05ZAB | Diotec

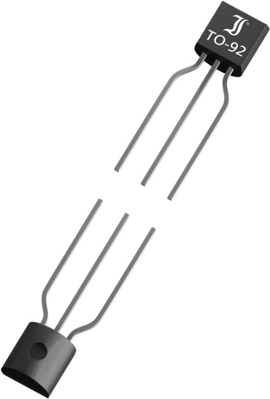

Voltage regulators, 4.8-5.2 VDC, 0.1 A, positive, TO-92, DI78L05ZAB
Order No.: 70S0440
MPN:
DI78L05ZAB
Unit Price (€ / pc.)
0.0659 € *
Standard delivery time from the manufacturer is: 4 Weeks
Positive Fixed Voltage Regulator, DI78L05ZAB, Diotec
Features
- Thermal overload protection
- Short circuit protection
- Compliant to RoHS
Applications
- Linear regulators
- Post regulators for switch mode
- DC-DC converters
- Battery backed-up regulated supply
- Commercial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-92 | |
| max. operating temperature | 125 °C | |
| Input voltage AC | 30 V | |
| Assembly | THT | |
| Output current | 0.1 A | |
| Version | fixed | |
| Output voltage DC | 4.8-5.2 VDC | |
| Number of Regulators | 1 | |
| Polarity | positive |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85423990 |
| Original Packaging | Ammopack with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
