DIP050S120 | Diotec

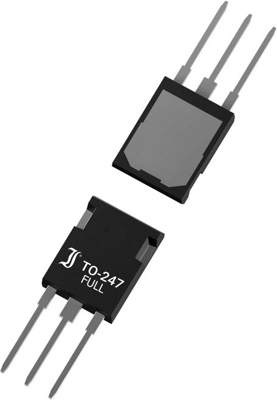

IGBT, 1200 V, 50 A, TO-247, Diotec DIP050S120
Order No.: 70S0382
MPN:
DIP050S120
Unit Price (€ / pc.)
4.1888 € *
Standard delivery time from the manufacturer is: 8 Weeks
Medium Fast Switching IGBT with Reverse Diode, DIP050S120, Diotec
Features
- Trench & Fieldstop Technology
- Fast switching speed
- Medium switching speed
- Parallel operation possible
- Short circuit proof
- Compliant to RoHS
Applications
- Switching frequency 40-60 kHz
- Solar inverters
- PTC Heaters
- Uninterruptiple Power Supplies (UPS)
- Commercial / Industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. current | 50 A | |
| max. operating temperature | 150 °C | |
| Switching loss b. switch off Eoff typ. | 1.4 J | |
| Switching loss at switch-on Eon typ. | 5.2 J | |
| max. Voltage | 1200 V | |
| Saturation voltage | 2.4 V | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Power dissipation | 600 W | |
| Enclosure | TO-247 | |
| Version | single |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 30 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
