CL40M35 | Diotec

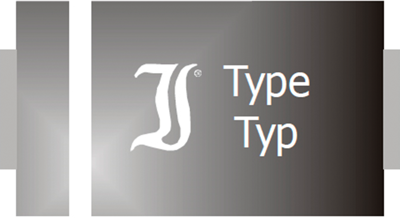

Current limiting diodes, 1 W, 40 mA, DO214AC
Unit Price (€ / pc.)
0.2499 € *
Available: 6,929 pcs.
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2499 €
50 pcs.
0.2083 €
100 pcs.
0.1845 €
500 pcs.
0.1666 €
1000 pcs.
0.1499 €
*incl. VAT plus shipping costs
Subject to prior sale
Current limiting diodes, type Diotec CL.
For use in constant current sources, parallel operation is possible for handling higher constant currents; Power losses: 1.0 W. Package material: UL 94 V-0 classified. Junction temperature: –50 to 150 °C. Package: DO214AC (SMA).
Technical attributes (type, limiter current (min./typ./max.), voltage limit, operating voltage (max.)): CL40M35, 34/40/46 mA, 3.0 V, 90 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | current limiting diode | |
| Power loss | 1 W | |
| Limiter current | 40 mA | |
| Rated blocking voltage | 500 mV | |
| Number of diodes | 1 | |
| max. working voltage | 90 V | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Enclosure | DO-214AC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 7,500 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| RoHS conform | Yes |
| SVHC free | No |
