MYS80 | Diotec

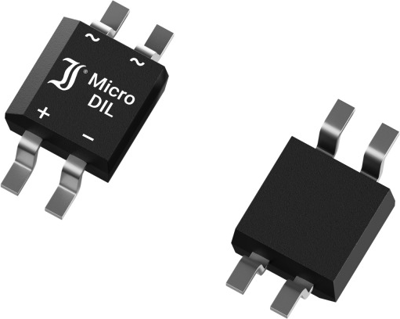

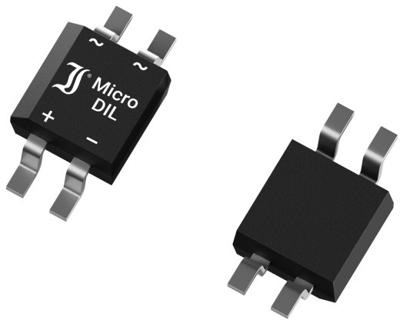

Diotec SMD bridge rectifier, 80 V, 160 V (RRM), 500 mA, MicroDIL, MYS80
Unit Price (€ / pc.)
0.0631 € *
Available: 114 pcs.
Available in 4 Days: 8,000 pcs. - if ordered today
Diode bridge rectifier, MYS80, DIOTEC
Features
- Four diodes in bridge configuration
- Industry smallest mains rectifier bridge
- Low junction capacitance
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Steering and clamping diodes
- Commercial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | SMD | |
| Enclosure | MicroDIL | |
| Input voltage | 80 V | |
| Rated current | 500 mA | |
| Voltage V RRM (peak reverse voltage) | 160 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 4,000 pieces |
| Country of origin | SI |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
