MYS250 | Diotec

Diotec SMD bridge rectifier, 250 V, 600 V (RRM), 0.5 A, MicroDIL, MYS250

Order No.: 62A330
MPN:
MYS250
Series: MYS
MYS250 Diotec Bridge Rectifiers

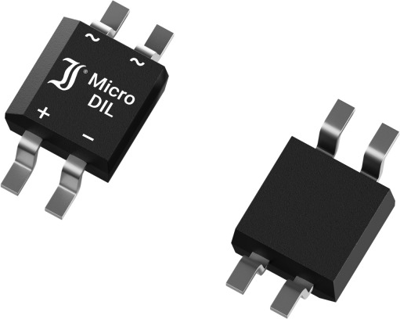

Image may differ
Unit Price (€ / pc.)
0.1271 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
508.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.1271 €

SMD Single Phase Diode Bridge Rectifier, MYS250, Diotec

Features

  • Four diodes in bridge configuration
  • UL recognized
  • Industry smallest mains rectifier bridge - 3 x 3 mm²
  • Low junction capacitance
  • Compliant to RoHS

Applications

  • 50/60 Hz Mains Rectification
  • Steering and clamping diodes
  • Commercial grade
Technical specifications
Filter Property Value
Version 1-phase
Assembly SMD
Enclosure MicroDIL
Input voltage 250 V
Rated current 0.5 A
Voltage V RRM (peak reverse voltage) 600 V
min. operating temperature -50 °C
max. operating temperature 150 °C
Logistics
Property Value
Country of origin SI
Original Packaging Reel with 4,000 pieces
Customs tariff number 85411000
MSL MSL 1
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
