KBPC604 | Diotec

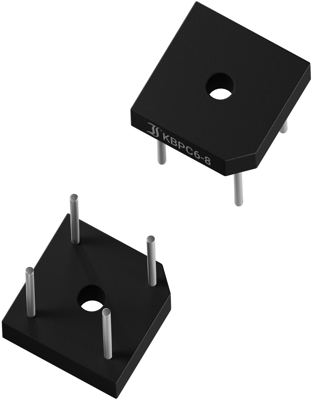

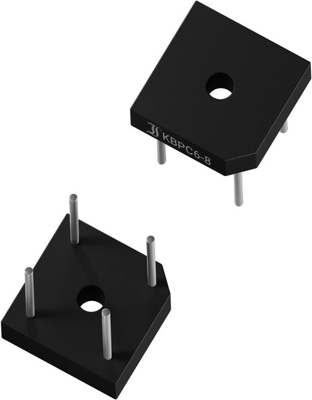

Diotec bridge rectifier, 280 V, 400 V (RRM), 6 A, flat bridge, KBPC604

Order No.: 09S4295
EAN: 4099879037909
MPN:
KBPC604
Series: KBPC6..
KBPC604 Diotec Bridge Rectifiers
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available in 4 Days: 800 pcs. - if ordered today
Total Price:
257.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
400 pcs.
0.6426 €

Diode bridge rectifier, KBPC604, DIOTEC

Features

  • Four diodes in bridge configuration
  • For free-standing or heatsink assembly
  • UL recognized
  • Compliant to RoHS, REACH and conflict minerals

Applications

  • 50/60 Hz mains rectification
  • Power supplies
  • Commercial or industrial grade
Technical specifications
Filter Property Value
Version 1-phase
Assembly THT
Enclosure flat bridge
Input voltage 280 V
Rated current 6 A
Voltage V RRM (peak reverse voltage) 400 V
min. operating temperature -50 °C
max. operating temperature 150 °C
Logistics
Property Value
MSL MSL 1
Original Packaging Bulk with 200 pieces
Customs tariff number 85411000
Country of origin CN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
