B250FS | Diotec

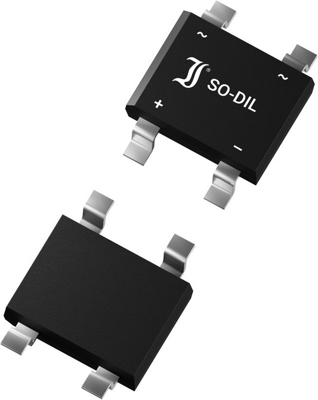

Diotec SMD bridge rectifier, 250 V, 600 V (RRM), 1 A, SO-DIL SLIM, B250FS
Unit Price (€ / pc.)
0.1418 € *
Available in 4 Days: 1,500 pcs. - if ordered today
Fast Recovery SMD Bridge Rectifier, B250FS, Diotec
Features
- UL recognized
- Low reverse recovery time
- Compliant to RoHS
Applications
- Rectification of medium frequencies
- Audio Power Supplies
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | SMD | |
| Enclosure | SO-DIL SLIM | |
| Input voltage | 250 V | |
| Rated current | 1 A | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1,500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
