B125C5000-3300A | Diotec

Diotec bridge rectifier, 125 V, 250 V (RRM), 5 A, SIL, B125C5000-3300A

Order No.: 60A834
EAN: 4099879038562
MPN:
B125C5000-3300A
Series: BxC5000

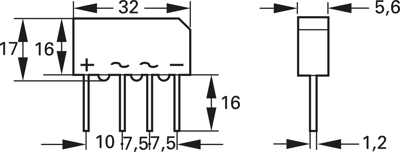

B125C5000-3300A Diotec Bridge Rectifiers Image 1
B125C5000-3300A Diotec Bridge Rectifiers Image 2
Image may differ
Unit Price (€ / pc.)
1.8445 € *
Available: 417 pcs.
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
10 pcs.
1.6660 €
100 pcs.
1.4280 €
500 pcs.
1.0710 €
*incl. VAT plus shipping costs
Subject to prior sale

Bridge rectifier, B125C5000-3300A, DIOTEC

Features

  • Four diodes in bridge configuration
  • For free-standing or heatsink assembly
  • UL recognized
  • Compliant to RoHS, REACH and conflict minerals

Applications

  • 50/60 Hz mains rectification
  • Power supplies
  • Commercial grade
Technical specifications
Filter Property Value
Version 1-phase
Assembly THT
Enclosure SIL
Input voltage 125 V
Rated current 5 A
Voltage V RRM (peak reverse voltage) 250 V
min. operating temperature -50 °C
max. operating temperature 150 °C
Logistics
Property Value
Country of origin SI
Customs tariff number 85411000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
