PZTA42 | Diotec

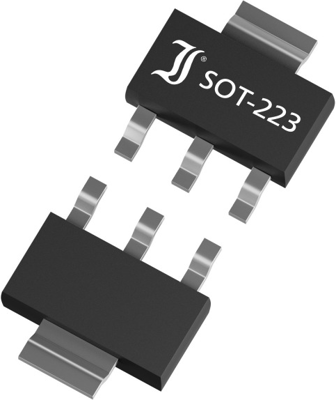

Bipolar junction transistor, NPN, 500 mA, 300 V, SMD, SOT-223, PZTA42
Unit Price (€ / pc.)
0.3213 € *
Available in 4 Days: 4,000 pcs. - if ordered today
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3213 €
100 pcs.
0.2023 €
250 pcs.
0.1214 €
1000 pcs.
0.0809 €
4000 pcs.
0.0647 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD High Voltage Transistor, PZTA42, Diotec
SMD High Voltage NPN Transistor
Features
- High collector-emitter voltage
- High power dissipation
- Compliant to RoHS
Applications
- Signal processing,
- Switching
- Amplification
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 300 V | |
| Frequency | 100 MHz | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | 300 V | |
| min. operating temperature | -55 °C | |
| Collector current | 500 mA | |
| Power dissipation | 1.5 W | |
| Enclosure | SOT-223 | |
| Transit frequency fTmin | 50 MHz | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Customs tariff number | 85412900 |
| Country of origin | CN |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
