MPSA06BK | Diotec
Bipolar junction transistor, NPN, 500 mA, 80 V, THT, TO-92, MPSA06BK
Unit Price (€ / pc.)
0.0340 € *
Available in 4 Days: 15,000 pcs. - if ordered today
NPN transistor, MPSA06BK, DIOTEC
General purpose NPN transistor.
Features
- Straight leads
- Compliant to RoHS, REACH, Conflict Minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max.voltage between collector and emitter Vceo | 80 V | |
| Transit frequency fTmin | 50 MHz | |
| max.voltage between collector and base Vcbo | 80 V | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Version | NPN | |
| Assembly | THT | |
| Frequency | 100 MHz | |
| Saturation voltage | 250 V | |
| Collector current | 500 mA | |

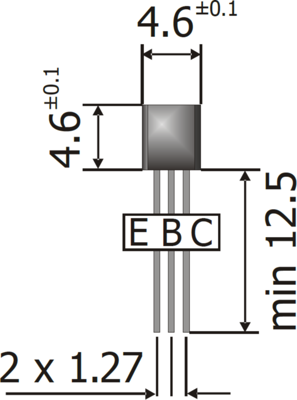

| Enclosure | TO-92 | |
| Power dissipation | 0.625 W | |
| Min DC gain | 100 mA |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85412100 |
| Country of origin | CN |
| Original Packaging | Bulk with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
