DI2579N | Diotec

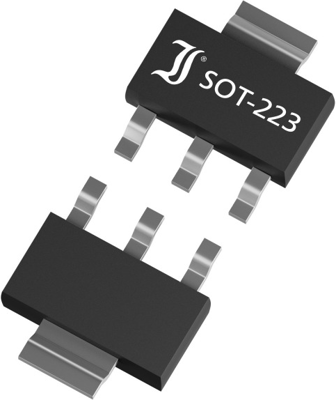

Bipolar junction transistor, NPN, 1000 mA, 700 V, SMD, SOT-223, DI2579N
Unit Price (€ / pc.)
0.1593 € *
Standard delivery time from the manufacturer is: 10 Weeks
SMD High Voltage Transistor, DI2579N, Diotec
SMD High Voltage NPN Transistor
Features
- High collector-emitter voltage
- Low saturation voltage
- Compliant to RoHS
Applications
- Signal processing
- Switching
- Amplification
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Version | NPN | |
| Power dissipation | 1.25 W | |
| Enclosure | SOT-223 | |
| max.voltage between collector and emitter Vceo | 700 V | |
| Collector current | 1000 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 4,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
