BCX56-10 | Diotec

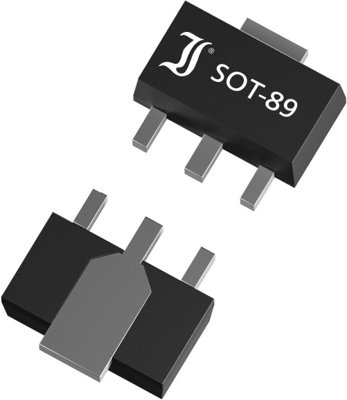

Bipolar junction transistor, NPN, 1 A, 80 V, SMD, SOT-89, BCX56-10
Unit Price (€ / pc.)
0.2868 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.87 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2868 €
100 pcs.
0.1797 €
250 pcs.
0.1075 €
500 pcs.
0.0716 €
1000 pcs.
0.0574 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD General Purpose Transistor, BCX56-10, Diotec
SMD General Purpose NPN Transistor
Features
- High collector current
- Low saturation voltage
- Two current gain groups
- Compliant to RoHS
Applications
- Signal processing
- Switching
- Amplification
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 100 V | |
| Frequency | 100 MHz | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | 80 V | |
| min. operating temperature | -55 °C | |
| Collector current | 1 A | |
| Power dissipation | 0.5 W | |
| Enclosure | SOT-89 | |
| Transit frequency fTmin | 130 MHz | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85412100 |
| Country of origin | CN |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
