BCP53-16 | Diotec

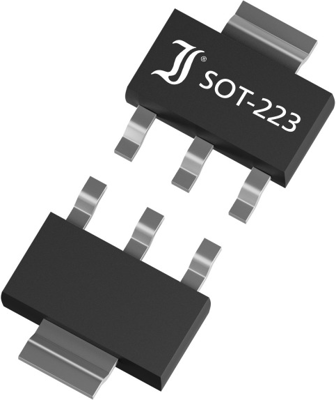

Bipolar junction transistor, PNP, -1 A, -80 V, SMD, SOT-223, BCP53-16
Unit Price (€ / pc.)
0.1178 € *
Standard delivery time from the manufacturer is: 4 Weeks
SMD General Purpose Transistor, BCP53-16, Diotec
SMD General Purpose PNP Transistor
Features
- High collector current
- Low saturation voltage
- Three current gain groups
- Compliant to RoHS
Applications
- Signal processing
- Switching
- Amplification
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power dissipation | 2 W | |
| Assembly | SMD | |
| max.voltage between collector and base Vcbo | -100 V | |
| Transit frequency fTmin | 120 MHz | |
| max. operating temperature | 150 °C | |
| Version | PNP | |
| Frequency | 100 MHz | |
| Enclosure | SOT-223 | |
| Collector current | -1 A | |
| min. operating temperature | -55 °C | |
| max.voltage between collector and emitter Vceo | -80 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85412900 |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
