BC849A | Diotec
Bipolar junction transistor, NPN, 100 mA, 30 V, SMD, SOT-23, BC849A
As a private customer, you can buy this item as soon as we have it back in stock.
NPN transistor, BC849A, DIOTEC
SMD general purpose NPN transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max DC amplification | 220 mA | |
| Saturation voltage | 600 mV | |
| Assembly | SMD | |

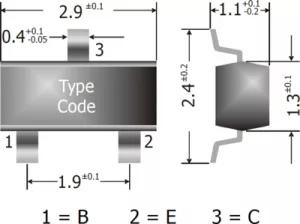

| Enclosure | SOT-23 | |
| max.voltage between collector and base Vcbo | 30 V | |
| Version | NPN | |
| min. operating temperature | -55 °C | |
| Transit frequency fTmin | 300 MHz | |
| Min DC gain | 110 mA | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and emitter Vceo | 30 V | |
| Collector current | 100 mA | |
| Frequency | 100 MHz | |
| Power dissipation | 0.25 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
