BC847AW | Diotec

Bipolar junction transistor, NPN, 100 mA, 45 V, SMD, SOT-323, BC847AW

Order No.: 09S3362
EAN: 4099879025685
MPN:
BC847AW
Series: BC
BC847AW Diotec Bipolar Transistors

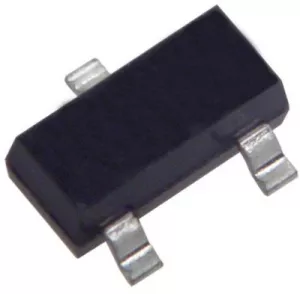

Image may differ
Unit Price (€ / pc.)
0.0250 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
74.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.0250 €

NPN transistor, BC847AW, DIOTEC

SMD general purpose NPN transistor.

Features

  • Compliant to RoHS, REACH, Conflict minerals

Applications

  • Signal processing
  • Switching
  • Amplification
  • Commercial/industrial grade
Technical specifications
Filter Property Value
Max DC amplification 220 mA
Collector current 100 mA
max. operating temperature 150 °C
Min DC gain 110 mA
Frequency 100 MHz
Power dissipation 0.25 W
min. operating temperature -55 °C
max.voltage between collector and base Vcbo 50 V
Version NPN
Transit frequency fTmin 300 MHz
Assembly SMD

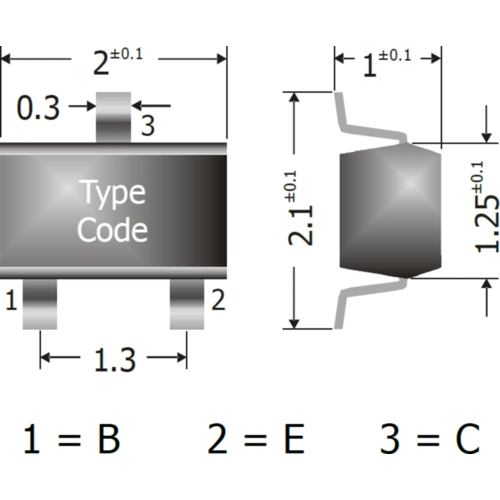

Enclosure SOT-323
max.voltage between collector and emitter Vceo 45 V
Saturation voltage 600 mV
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 3,000 pieces
MSL MSL 1
Customs tariff number 85412100
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
