BC817K-16 | Diotec
Bipolar junction transistor, NPN, 500 mA, 45 V, SMD, SOT-23, BC817K-16
Unit Price (€ / pc.)
0.1047 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1047 €
100 pcs.
0.0655 €
250 pcs.
0.0393 €
1000 pcs.
0.0262 €
3000 pcs.
0.0209 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, BC817K-16, DIOTEC
SMD general purpose NPN transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
- Low thermal resistance
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Transit frequency fTmin | 170 MHz | |
| max. operating temperature | 150 °C | |
| Saturation voltage | 700 mV | |
| Min DC gain | 100 mA | |
| Max DC amplification | 250 mA | |
| Frequency | 170 MHz | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | 45 V | |
| min. operating temperature | -55 °C | |
| max.voltage between collector and base Vcbo | 50 V | |
| Power dissipation | 0.775 W | |

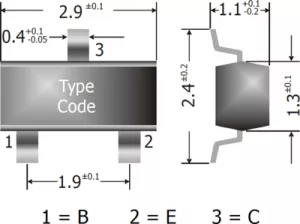

| Enclosure | SOT-23 | |
| Collector current | 500 mA | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85412100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS conform | Yes |
| SVHC free | No |
