BC807-25 | Diotec

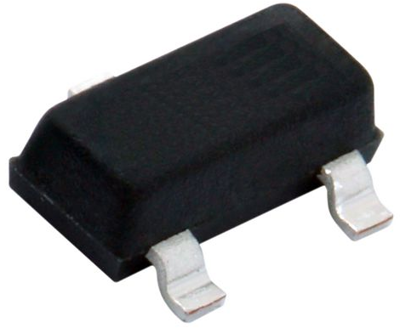

Bipolar junction transistor, PNP, -800 mA, -45 V, SMD, SOT-23, BC807-25
Unit Price (€ / pc.)
0.0500 € *
Available: 1,570 pcs.
Available in 4 Days: 282,000 pcs. - if ordered today
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0500 €
10 pcs.
0.0357 €
100 pcs.
0.0309 €
500 pcs.
0.0262 €
1000 pcs.
0.0238 €
*incl. VAT plus shipping costs
Subject to prior sale
PNP transistor, BC807-25, DIOTEC
SMD general purpose PNP transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min DC gain | 160 mA | |
| Enclosure | SOT-23 | |
| Version | PNP | |
| max. operating temperature | 150 °C | |
| Saturation voltage | -700 mV | |
| Collector current | -800 mA | |
| Transit frequency fTmin | 100 MHz | |
| Assembly | SMD | |
| Power dissipation | 0.31 W | |
| Max DC amplification | 400 mA | |
| max.voltage between collector and emitter Vceo | -45 V | |
| Frequency | 50 MHz | |
| min. operating temperature | -55 °C | |
| Rated current | 800 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85412100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
