BC807-16 | Diotec

Bipolar junction transistor, PNP, -800 mA, -45 V, SMD, SOT-23, BC807-16

Order No.: 09S3340
EAN: 4099879025463
MPN:
BC807-16
Series: BC807
BC807-16 Diotec Bipolar Transistors

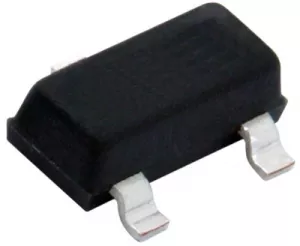

Image may differ
Unit Price (€ / pc.)
0.0207 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
62.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.0207 €

PNP transistor, BC807-16, DIOTEC

SMD general purpose PNP transistor.

Features

  • Compliant to RoHS, REACH, Conflict minerals

Applications

  • Signal processing
  • Switching
  • Amplification
  • Commercial/industrial grade
Technical specifications
Filter Property Value
min. operating temperature -55 °C
Frequency 50 MHz
max. operating temperature 150 °C
Collector current -800 mA
Version PNP
Assembly SMD
Power dissipation 0.31 W
max.voltage between collector and emitter Vceo -45 V
Saturation voltage -700 mV
Transit frequency fTmin 100 MHz
Min DC gain 100 mA

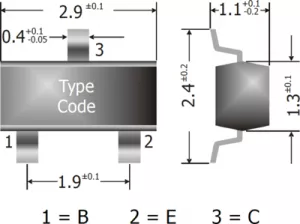

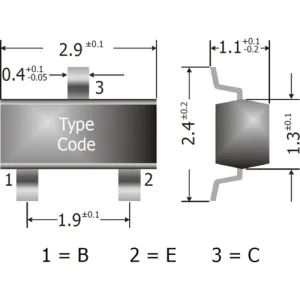

Enclosure SOT-23
Max DC amplification 250 mA
Logistics
Property Value
Customs tariff number 85412100
MSL MSL 1
Country of origin CN
Original Packaging Reel with 3,000 pieces
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol
