BC556BBK | Diotec
Bipolar junction transistor, PNP, -100 mA, -65 V, THT, TO-92, BC556BBK
Unit Price (€ / pc.)
0.0193 € *
Available in 4 Days: 186,000 pcs. - if ordered today
PNP transistor, BC556BBK, DIOTEC
General purpose PNP transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Frequency | 100 MHz | |
| Min DC gain | 200 mA | |
| Max DC amplification | 450 mA | |
| Saturation voltage | -650 mV | |

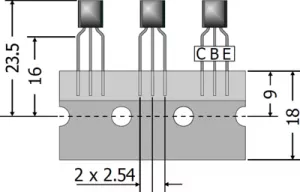

| Enclosure | TO-92 | |
| Collector current | -100 mA | |
| Power dissipation | 0.5 W | |
| Transit frequency fTmin | 150 MHz | |
| Version | PNP | |
| max.voltage between collector and emitter Vceo | -65 V | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| max.voltage between collector and base Vcbo | -80 V |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Bulk with 5,000 pieces |
| Customs tariff number | 85412100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
