BC549C | Diotec

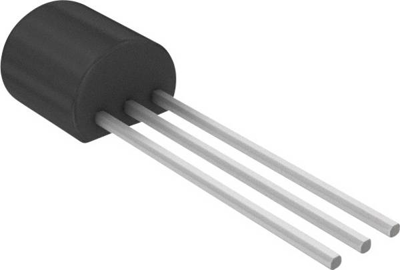

Bipolar junction transistor, NPN, 100 mA, 30 V, THT, TO-92, BC549C
Unit Price (€ / pc.)
0.1047 € *
Available: 540 pcs.
Available in 4 Days: 48,000 pcs. - if ordered today
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1047 €
10 pcs.
0.0916 €
100 pcs.
0.0655 €
300 pcs.
0.0393 €
1000 pcs.
0.0274 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, BC549C, DIOTEC
General purpose NPN transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min DC gain | 420 mA | |
| Enclosure | TO-92 | |
| Version | NPN | |
| max. operating temperature | 150 °C | |
| Saturation voltage | 600 mV | |
| Collector current | 100 mA | |
| Transit frequency fTmin | 300 MHz | |
| Assembly | THT | |
| Power dissipation | 0.5 W | |
| Max DC amplification | 800 mA | |
| max.voltage between collector and emitter Vceo | 30 V | |
| Frequency | 100 MHz | |
| min. operating temperature | -55 °C | |
| Rated current | 100 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1 piece |
| Customs tariff number | 85412100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
