BC327-40BK | Diotec
Bipolar junction transistor, PNP, -800 mA, -45 V, THT, TO-92, BC327-40BK
Unit Price (€ / pc.)
0.1028 € *
Available in 4 Days: 70,000 pcs. - if ordered today
Total Price:
1.03 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1028 €
100 pcs.
0.0643 €
250 pcs.
0.0386 €
1000 pcs.
0.0257 €
5000 pcs.
0.0206 €
*incl. VAT plus shipping costs
Subject to prior sale
Planar transistor, BC327-40BK, DIOTEC
General purpose Si-Epitaxial planar transistor.
Features
- Power dissipation
- Plastic case
- UL classification 94V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Transit frequency fTmin | 100 MHz | |
| max. operating temperature | 150 °C | |
| Saturation voltage | -700 mV | |
| Min DC gain | 250 mA | |
| Max DC amplification | 630 mA | |
| Assembly | THT | |
| max.voltage between collector and emitter Vceo | -45 V | |
| min. operating temperature | -55 °C | |
| Power dissipation | 0.625 W | |

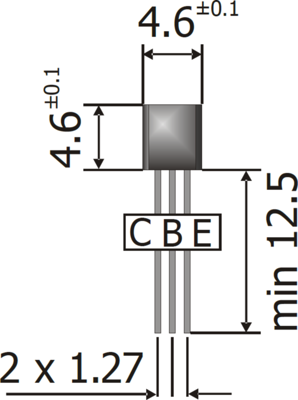

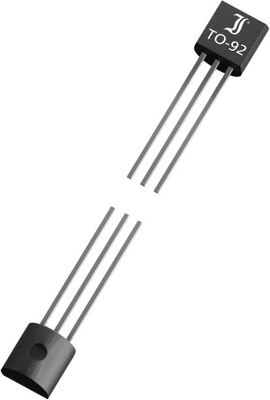

| Enclosure | TO-92 | |
| Collector current | -800 mA | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 5,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85412100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
