BC327-40 | Diotec

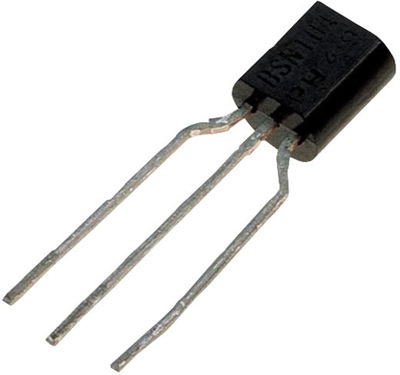

Bipolar junction transistor, PNP, -800 mA, -45 V, THT, TO-92, BC327-40
Unit Price (€ / pc.)
0.0257 € *
Standard delivery time from the manufacturer is: On Request
PNP transistor, BC327-40, DIOTEC
General purpose PNP transistor.
Features
- Compliant to RoHS, REACH, Conflict minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| Frequency | 50 MHz | |
| max. operating temperature | 150 °C | |
| Collector current | -800 mA | |
| Version | PNP | |
| Rated current | 800 mA | |
| Assembly | THT | |
| Power dissipation | 0.625 W | |
| max.voltage between collector and emitter Vceo | -45 V | |
| Saturation voltage | -700 mV | |
| Transit frequency fTmin | 100 MHz | |
| Min DC gain | 250 mA | |
| Enclosure | TO-92 | |
| Max DC amplification | 630 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412100 |
| Country of origin | CN |
| Original Packaging | Ammopack with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
