MM1Z4690R13 | Diotec Semiconductors

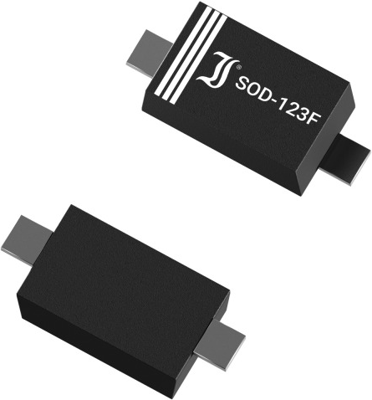

Z-diode, 5.6 V, 500 mW, SOD-123F, MM1Z4690R13
Order No.: 09S6264
MPN:
MM1Z4690R13
Unit Price (€ / pc.)
0.0324 € *
Standard delivery time from the manufacturer is: 6 Weeks
SMD Planar Zener Diode, MM1Z4690R13, Diotec Semiconductors
Features
- Zener voltage specified at 50μA
- Low leakage current
- Low profile package
Applications
- Voltage stabilization and regulators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | zener diode | |
| Zener voltage | 5.6 V | |
| Power loss | 500 mW | |
| Enclosure | SOD-123F | |
| Number of diodes | 1 | |
| Assembly | SMD | |
| On-State Voltage | 0.9 V | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| Length | 2.7 mm | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
