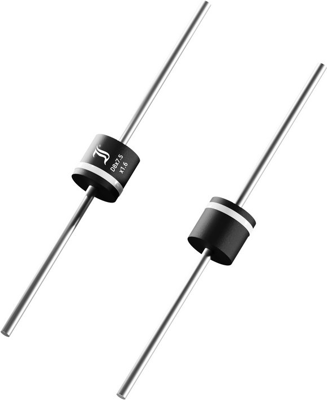

5KP28CA-AQ | Diotec Semiconductors
TVS diode, bidirektional, AEC-Q101 qualified, 5000 W, 28 V, D8x7.5, Diotec Semiconductors 5KP28CA-AQ
Unit Price (€ / pc.)
0.6069 € *
Standard delivery time from the manufacturer is: 8 Weeks
Transient Diode, 5KP28CA-AQ, Diotec
Features
- Peak pulse power of 5000 W
- Very fast response time
- AEC-Q101 qualified
Applications
- Over-voltage protection
- Free-wheeling diodes
- Load-dump protection in automotive supply systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bidirektional, AEC-Q101 qualified | |
| Assembly | THT | |
| min. operating temperature | -50 °C | |
| Pulse power loss | 5000 W | |
| Rated blocking voltage | 28 V | |
| Continuous power loss | 8 W | |
| Breakdown voltage | 31.1 V | |
| Enclosure | D8x7.5 | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85411000 |
| Original Packaging | Ammopack with 500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
