KT20K150 | Diotec Semiconductors

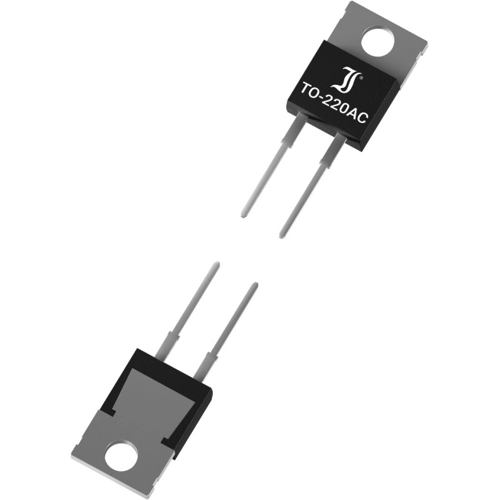

Fast rectifier diode, 20 A, TO-220AC, protectify, KT20K150
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5474 € *
Available in 4 Days: 433 pcs. - if ordered today
Fast Efficient Rectifier Diode
Features
- Low forward voltage drop
- Low thermal resistance
- High forward surge capability
- High reverse robustness
Applications
- Rectification of medium frequencies
- Free.wheelingdiodes for tools and DC motors
- Polarity Protection
- Solar Bypass diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | fast rectifier diode | |
| Version | protectify | |
| Enclosure | TO-220AC | |
| Rated blocking voltage | 160 V | |
| Voltage V RRM (peak reverse voltage) | 150 V | |
| Forward Current | 20 A | |
| Assembly | THT | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 1,000 pieces |
| Customs tariff number | 85411000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
