BAV100 | Diotec Semiconductors
Superfast rectifier diode, 60 V, BAV100
Unit Price (€ / pc.)
0.1749 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1.75 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1749 €
100 pcs.
0.1095 €
250 pcs.
0.0657 €
1000 pcs.
0.0438 €
2500 pcs.
0.0350 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD rectifier diodes, type Diotec BAV1.

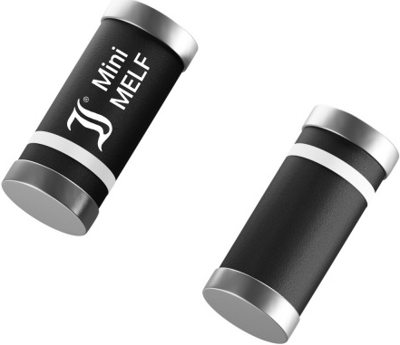

Super-fast reverse recovery, for the rectification of mid-range frequencies; Package material: UL 94 V-0. Junction temperature: –50 to +175 °C. Package: DO213AA (MiniMELF).
Technical attributes (type, periodic peak reverse voltage, limiting value of mean on-state current): BAV100, 50 V, 60 V, 200 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge blocking voltage V RMS | 60 V | |
| Assembly | SMD | |
| Junction temperature (max.) | 175 °C | |
| Number of diodes | 1 | |
| Product type | superfast rectifier diode | |
| max. operating temperature | 175 °C | |
| Voltage V RRM (peak reverse voltage) | 50 V | |
| Junction temperature (min.) | -50 °C | |
| min. operating temperature | -50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| SVHC free | No |
| RoHS conform | Yes |
