2CL2FL | Diotec Semiconductors

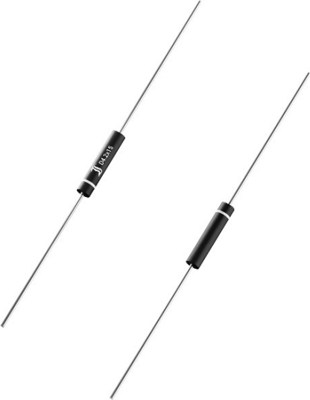

High voltage rectifier diode, D4.2x15, 2CL2FL
Order No.: 09S6054
MPN:
2CL2FL
Unit Price (€ / pc.)
2.1539 € *
Standard delivery time from the manufacturer is: 10 Weeks
Fast Recovery High Voltage Rectifier Diode, 2CL2FL, Diotec Semiconductors
Features
- High creepage and clearance
- High reverse voltage
- Fast reverse recovery
Applications
- High voltage rectification at medium to high frequencies
- Voltage multiplier
- Microwave generators
- Laser power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | high voltage rectifier diode | |
| Enclosure | D4.2x15 | |
| Voltage V RRM (peak reverse voltage) | 15000 V | |
| Number of diodes | 1 | |
| Assembly | axial | |
| Junction temperature (min.) | -55 °C | |
| Junction temperature (max.) | 130 °C | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
